Hearthstone Manchester

Description

Description

Hearthstone-Manchester

Heats up to: 2,400 sq. ft.
Burn Time: Up to 12 hours
Heat Life: Up to 14 hours
Size: 78,000 BTUs
Efficiency: 80%
Maximum Log Length: 24″

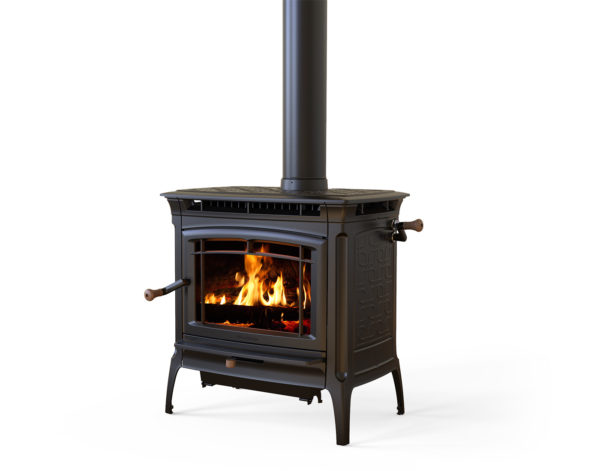

In the tradition of building high-performance clean burning appliances, HearthStone presents the Manchester wood burning stove.

This fully cast iron wood stove features a convective air system with an integrated cast iron heat exchanger that results in unmatched heating

performance. The soapstone lined interior of the firebox captures and stores heat to create a clean and efficient burn and extend the HeatLife^TM of each

load of wood.

With a new yet traditional style, a large open viewof the fire, a left or right (optional) side loading door, and an integrated, fully finished rear heat shield, the

Manchester is beautiful and versatile addition to any home and a smart move to a sustainable source of green energy.

Side load door

Available as a right or left side-load with exclusive extra deep fold-down ash lip to keep ashes within the firebox.

Cast Iron Construction

High performance convective cast iron firebox with integrated heat exchanger.

Soapstone lined interior

50lbs of soapstone refractory extends the HeatLife^TM.

Unmatched Fire Viewing

Large single door allows an unobstructed view of the dazzling fire.

Single air control

Stove operation is easy; the performance controlled and consistent.

Non-catalytic combustion

Clean-burning, complete combustion provides more heat from less wood and reduces creosote accumulation.

Open-and-close ash grate and removable ash tray

Easy, clean ash removal.

Specifications

• • Heats up to 2,400 sq. ft.

• • Burn Time Up to 12 hours

• • Heat Life Up to 14 hours

• • Size 78,000 BTUs

• • Efficiency 80%

• • Width 31 1/2″”

• • Height (includes flue collar) 31″”

• • Depth (includes flue collar) 20″”

• • Maximum Log Length 24″”

• • Firebox Capacity 2.9 cubic feet

• • Flue Exit & Diameter top or rear – 6″”

• • Ash Pan Yes

• • Optional Blower Kit Yes

• • Actual Weight (lbs.) 515

• • Alcove Certified Yes

• • Mobile Home Certified Yes

• • Clearances (With single wall pipe & no rear heat shield)

• • Side 18″”

• • Rear 16″”

• • Corner 9″”

• • Clearances (With double-wall pipe & rear heat shield)

• • Side 16″”

• • Rear 6″”

• • Corner 9″”

Color Finishes

• • Brown Enamel

• • Matte Black
  • Barn Red
