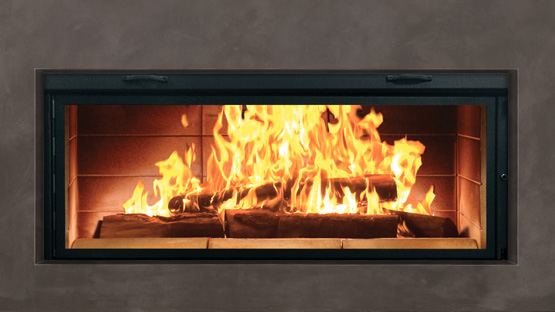

Renaissance Linear 50

TECHNICAL SPECS

Outside Dimensions 70 3/8″W x 66 3/8″H x 28 3/4″D
Shipping Weight 950 lbs
Shipping Crate Size 70 1/4″W x 69 1/2″H x 32 1/2″D
Door Opening Size 50 7/16″W x 19 7/8″H
Glass Viewing Size 45 7/8″W x 15 3/8″H
Firebox Dimensions 44 1/2″W x 14″D
Chimney Size 10″ RIS
Minimum Chimney Height 12’ (more with elbows)
Touch-up Paint Stove Bright Metallic Black
Maximum Fuel Load 4-5 medium logs
Maximum Log Length 24” maximum
Gas Log Provision YES
HRS (Heat Recovery System) Included with fireplace,
Two 10″ dia. outlet ducts – 5′ length
Two 10″ dia. inlet ducts – 5′ length
HRS Grills Four 13 1/2″ x 6″ wall grills (included)
Mobile Home Approved NO

Options

Outside Air 4″, meets R2000 (FO-INT)
HRS extensions
EO-DUCT = 5’ outlet extension
EO-CID = 5’ inlet extension
