Stûv 16 Combo

Description

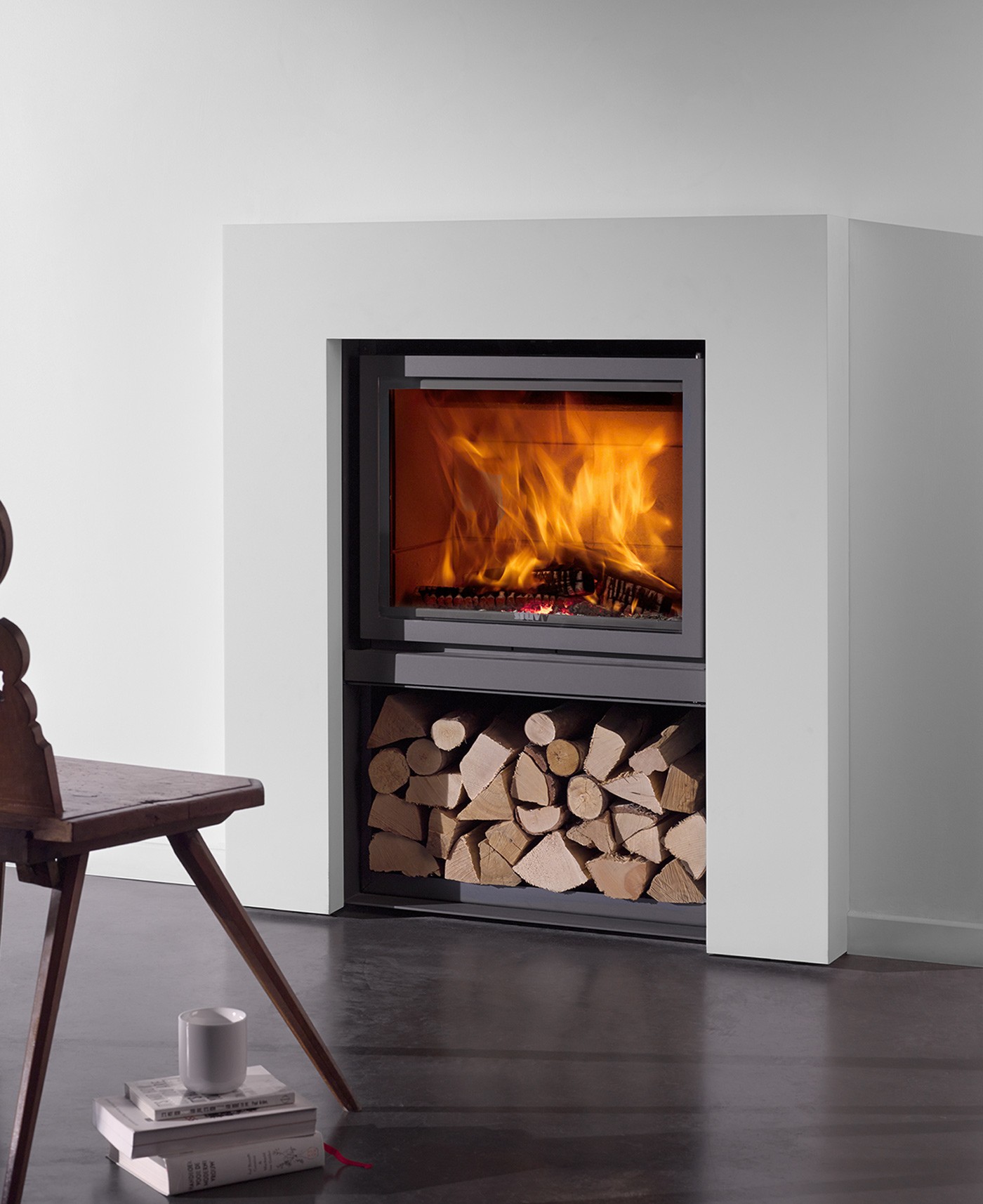

The Stûv 16 Combo

Clean lines. Amazing performance.

The Stûv 16 line showcases the beauty of flames through its refined design. These models of wood fireplaces and inserts have a large opening for maximum heat distribution. Fire in its purest form with automatic control – The combustion techniques of the Stûv 16 allows optimizing their efficiency while eliminating their environmental impact. Equipped with SBR (single burn rate) automatic control, these models are easy to use: no air register to manipulate all you need to do is light the logs and enjoy the spectacular fire.

Specifications

EPA Certified – Low Fine Particulate Matter Emissions
Combustion technology SBR
 – Single Burn Rate
Weight of the unit LBS 16/58 : 245 | 16/68 : 270 | 16/78 : 290
Minimum power BTU 15.000
Maximum power BTU 16/58 : 48,000 | 16/68 : 56,000 | 16/78 : 72,000
Wood consumption Kg/hr 16/58 : 1,8 | 16/68 : 2,1 | 16/78 : 2,5
Particle emissions* gr/hr 16/58 : 1,4 | 16/68 : 2,3 | 16/78 : 3,1
Length of logs in vertical position 12″
Length of logs in horizontal position 16/58 : 17″ | 16/68 : 21″ | 16/78 : 25″
Air intake (min.) Ø63 mm | Ø2.5″
Airtight outdoor air intake Option
North american standards UL 127 – 2011 | ULC S610 – M87 | [ 1658-Z & 1668-Z ] EPA 2020 NSPS phase 1 + MONTREAL | [ 1678-Z ] EPA NSPS phase 2
Chimney diameter & type Ø6″ (STD) – Ø7″ (OPT) | UL-127 | ULC-S610 CAN | ULC-S635 | CAN/ULC-S640 | UL-1777
Chimnet adaptor Ø6″ & Ø7″ Standard
Thin Edge Frame Option
Picture Type Frame Option
Dimendion A 16/58 : 29-1/4″ | 16/68 : 33-3/16″ | 16/78 : 37-1/8″
