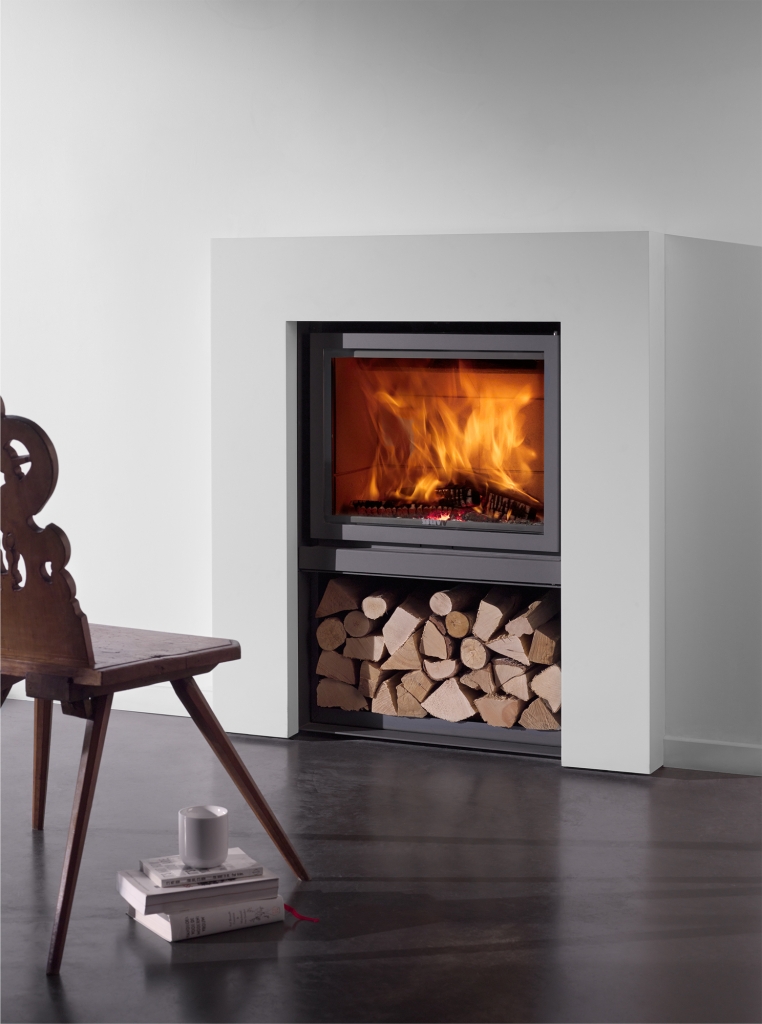

Stûv 16-Z

Description

Stûv 16-Z (zero clearance)

Zero compromise!

Clean line inserts showcasing the flames to perfection. The Stûv 16 in are EPA certified. Fancy an XXL fire? This is exactly what you’ll get with the Stûv 16-in, with its panoramic view of the flames. Atmosphere and satisfaction guaranteed. Thanks to the innovative combustion system and exceptional efficiency (over 75%), this is the perfect solution for your main or occasional heating needs. Designed to suit an existing fire, the Stûv 16-in is available in three sizes. Every home needs a Stûv!

Combustion technique and air circulation Stûv 16

  1. Combustion air. Illustration with direct air intake under the stove.
  2. Combustion.
    The air intake, the combustion chamber and smoke exhaust form an airtight system.
  3. The air is taken into the room then heated by the stove.
  4. The hot air is exchanged with the convection air which flows along the combustion chamber.
  5. Hot air is circulated in the room by natural convection.

Specifications

Combustion technology SBR – Single Burn Rate
Weight of the unit LBS 16/58 : 245 | 16/68 : 270 | 16/78 : 290
Minimum power BTU 15.000
Maximum power BTU 16/58 : 48.000 | 16/68 : 56.000 | 16/78 : 72.000
Wood consumption Kg/hr 16/58 : 1,8 | 16/68 : 2,1 | 16/78 : 2,5
Particle emissions* gr/hr 16/58 : 1,4 | 16/68 : 2,3 | 16/78 : 3,1
Length of logs in vertical position 12″
Length of logs in horizontal position 16/58 : 17″ | 16/68 : 21″ | 16/78 : 25″
Air intake (min.) Ø63 mm | Ø2.5″
Airtight outdoor air intake Option
North american standards UL 127 – 2011 | ULC S610 – M87 | [ 1658-Z & 1668-Z ] EPA 2020 NSPS phase 1 + MONTREAL | [ 1678-Z ] EPA NSPS phase 2
Chimney diameter & type Ø6″ (STD) – Ø7″ (OPT) | UL-127 | ULC-S610 CAN | ULC-S635 | CAN/ULC-S640 | UL-1777
Chimnet adaptor Ø6″ & Ø7″ Standard
Thin Edge Frame Option
Picture Type Frame Option
Dimendion A 16/58 : 29-1/4″ | 16/68 : 33-3/16″ | 16/78 : 37-1/8″
